    This topic has been deleted. Only users with topic management privileges can see it.
    • T Offline
      Tokyto_
      last edited by Tokyto_

      This is really cool work! I wanted to see what could be possible with this, so I experimented a little bit 😄

      Since I was mapping in the past and fixed water to a single level was quite a frustrating limitation, I made it so it's possible to create water height at different levels / regions.

      I now have a small proof of concept with polygon-shaped lakes at different elevations. Ships, submarines, torpedoes and naval factories seem to work in my tests. I also tried AI games and a short two-PC LAN game without a desync, although there’s still a lot more testing to do.

      Video: https://www.youtube.com/watch?v=UmmmxQOOND8
      Code: https://github.com/Tokyto/faf-re/tree/regional-water
      Editor + Explanation: https://github.com/Tokyto/faf-re/tree/regional-water/regional-water-demo

      Also had to make a small tool that allows you to make water / lakes regional for said map (saves as EXAMPLEMAP.v0001.scmap.regionalwater alongside the actual map):

      A few technical details:

      • The engine loads polygon regions and their water heights from the map’s sidecar file.
      • Water height queries use the local region at a given position. This needed changes in several places, including unit movement, projectile collisions, building placement and some AI queries.
      • The renderer creates separate water surfaces for the regions. So far I’ve tested this with D3D9.
      • In my tests, ships could navigate along the shores, submarines could dive, torpedoes and torpedo bombers worked, and AI built a naval factory and ships. Transports could also unload units in the raised water.
      • The LAN test was done with the same modified engine and map files on both PCs. It’s a promising start, but definitely not proof that longer multiplayer games are desync-free.

      This is an experimental demo, not a finished FAF feature. Big thanks to Draiget and everyone who worked on reconstructing the engine — I hope this shows some of the interesting possibilities and encourages more experiments!

      Feel free to use my vibe coding as you see fit 😄

      IndexLibrorumI 1 Reply Last reply Reply Quote 1
      • N Offline
        Nooby @IndexLibrorum
        last edited by

        @IndexLibrorum

        This would really speed up my work with

        https://forum.faforever.com/topic/7746/unit-logger-mod?_=1793094473252

        I currently have a 169 GB postgres database of unit information through time every few ticks of thousands of replays and the game result. I am sure some interesting strategy and balance information could be extracted from this. Currently it is run on a Linux machine through wine but it does have issues with black-screens and removing the graphics entirely would make it much smoother and faster.

        1 Reply Last reply Reply Quote 0
        • M MayeulC referenced this topic
        • IndexLibrorumI Offline
          IndexLibrorum Moderator @Tokyto_
          last edited by

          @Tokyto_ said:

          I now have a small proof of concept with polygon-shaped lakes at different elevations. Ships, submarines, torpedoes and naval factories seem to work in my tests. I also tried AI games and a short two-PC LAN game without a desync, although there’s still a lot more testing to do.

          Very cool. If you're looking for another related concept, mapmakers have been complaining for years that there is no kind of terrain or option to allow both naval and land units to cross the same spot. Think something like bridges, or 'shallows' like AoE has.

          Something like that would be really interesting for us mappers.

          "Design is an iterative process. The required number of iterations is one more than the number you have currently done. This is true at any point in time."

          See all my projects:

          1 Reply Last reply Reply Quote 1
          • JipJ Offline
            Jip
            last edited by Jip

            This is the most promising step forward for FAForever, with no intentions to refute other work like the alternative version of the game in written in Rust which is also impressive. @draiget and the others that are or were involved - hats off to all of you. This is such a milestone that it may almost make me come back to see it through. The fact that we can now fix fundamental problems with this engine makes for a promising future for FAForever. The problems that Draiget mention with regards to hardening the application are real. Being able to run the game at x64 instead of x86 is also not to be underestimated, as I assume this would also relieve the RAM limit that we often experience. This truly opens the flood gates:

            • We can actually debug and understand the engine now. No more going in circles and guessing.
            • We can fix networking problems where they occur. No more wrappers like ICE adapters.
            • If I read it correct, the whole thing is even backwards compatible (!!)

            These two things on their own are so fundamental. Networking problems have been the Achilles heel of this community. It's literally what's been holding us back. Having more, decent performance is a huge plus. All the other things are not quite as relevant. Having water at different elevations is nice, but (and don't take offense by this, please) it is feature creep. Just like 10k vs 10k ASF battles. These are not the things we need. We need a more stable game, where there's less lag. Matchmaker can just launch, without it being a gamble on 4v4 or higher queues. The game is great (and sure, limited to some extend) on its own. It's why all of you are still here. So whatever happens next, please focus on the problems that actually matter first. The problems that we could never really solve, only apply bandaids for.

            A work of art is never finished, merely abandoned

            1 Reply Last reply Reply Quote 11
            • GiebmasseG Offline
              Giebmasse Team Lead FAF Association Board Moderator Admin
              last edited by

              Welcome back Jip, you know you want to tinker with the engine a bit 🙂

              1 Reply Last reply Reply Quote 1
              • N Offline
                Nombringer
                last edited by

                A question because I'm interested, with the caveat that I'm not sure if this can be actually answered on a public forum:

                Do we run into any potential legal issues with this? Is there anything that needs to be considered?

                D 1 Reply Last reply Reply Quote 0
                • D Offline
                  Draiget @Nombringer
                  last edited by

                  @Nombringer my repository is a potential legal issue tbh, less that it was initially because I stripped CRI middleware and replaced it with the open source FFmpeg, but still it does do almost 1:1 reassembly of original binary. Yes that's not "original" sources but it's very close. The way we can make it cleaner, is to remove all mentions of "Address: 0x0..." that I've added in every engine function during restoration process and rename every single class\namespace to a custom one, better a clean-room implementation of moho engine with same replay-parity (which is achievable and I did created specs for this already for future). But since FAF model is to require to buy\have original game before playing - I don't think we someone will even be looking on us with lawyers, but who knows for sure.

                  1 Reply Last reply Reply Quote 0
                  • Z Offline
                    zhanghm18
                    last edited by zhanghm18

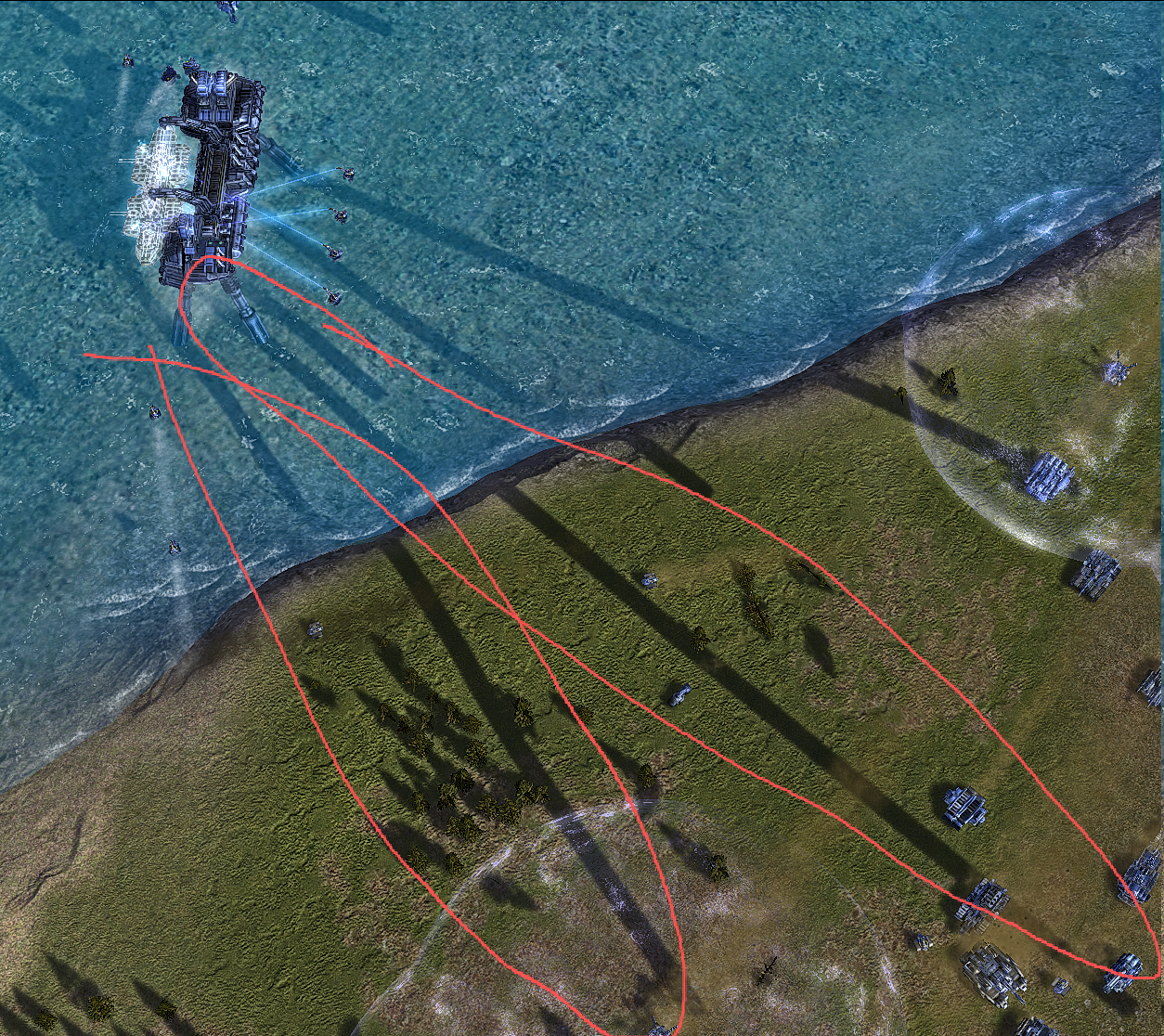

                    BUG in d3d12 mode.

                    Additionally, I have observed that smoke particles from certain explosions behave abnormally; compared to the original version, they drift outward and upward for an excessive amount of time and fail to dissipate. At times, smoke particles remain visible directly in front of the camera for an extended period. I have been unable to consistently reproduce this bug.

                    1 Reply Last reply Reply Quote 0
                    • N Offline
                      Novus-Wojtek
                      last edited by

                      I know it’s the faf forums but, would this be able to be compatible with LOUD?

                      S 1 Reply Last reply Reply Quote 0
                      • maudlin27M Online
                        maudlin27
                        last edited by

                        My understanding is not currently, but Marlo's been working on steam compatibility differences to FAF so it sounds feasible that LOUD compatibility could be reached

                        M27AI and M28AI developer:
                        https://forum.faforever.com/topic/5331/m28ai-devlog-v327
                        M28 trophy holders: Radde and Yew (Radde trophy, v309) and Malitarh and Lazert (Sladow trophy, v327)

                        1 Reply Last reply Reply Quote 0
                        • S Offline
                          Sprouto @Novus-Wojtek
                          last edited by Sprouto

                          @Novus-Wojtek LOUD is based entirely on the original EXE, so that points to some differences that aren't currently resolved.

                          Marlo has indeed made considerable progress in putting together a version of this project which is entirely compatible, which would be a potential boon for both LOUD and users of the Steam version of the game. My personal feeling is this - if this work can reach to all the many players who don't use FAF, or LOUD - then it's only good for both communities.

                          1 Reply Last reply Reply Quote 2
                          • X Offline
                            Xiaomi
                            last edited by

                            @draiget I have a question about the source code. Have you measured how much simulation time is spent on Lua code and how much on C++? As I understood it, the C++ simulation does not run in parallel with the Lua code. Or is that not the case?

                            D 1 Reply Last reply Reply Quote 0
                            • D Offline
                              Draiget @Xiaomi
                              last edited by

                              @Xiaomi Lua stuff only takes about 6.5% of a tick-time in my measurements:

                              • 5.3% is Lua threads (unit, weapon, AI brain and score scripts)
                              • 1.1% is Lua garbage collection.

                              Calls from the engine into Lua callbacks (OnDamage, OnKilled, weapon and projectile callbacks and so on) aren't separated yet, so they're still counted as C++ time. The rest is C++: bone/animation updates are about 15%, vision/radar about 13%, and building the state sent to the UI about 12%.

                              On parallelism - basically yes, very bit of sim Lua runs on the single sim thread, interleaved with the C++. Engine calls into Lua, and Lua calls back into the engine, nothing really runs Lua in parallel. What my build adds is helper threads, like: vision refresh, the UI sync data, effects, coordinate updates and the mark/sweep part of the Lua GC. In one case (vision) this C++ work overlaps with the sim thread's Lua, but before that Lua calls any engine function, the helper jobs are finished first, so the results stay identical to the original game and replays still match.

                              1 Reply Last reply Reply Quote 0
                              • M Offline
                                MrMayDay_
                                last edited by MrMayDay_

                                Hi, @draiget !

                                I'd like to help speed up development if possible.

                                I have a $100 Codex subscription, and I'd be happy to contribute some of my usage limits to the project. The only catch is that I'm not really familiar with this type of software.

                                If you're interested, you could assign me specific tasks or GitHub issues, and I could work on them using Codex and submit PRs for your review.

                                Or we could figure out some other way to collaborate that works best for you.

                                Let me know what you think!
                                Write to me in Discord if interesting (nickname ernestio)

                                1 Reply Last reply Reply Quote 0
                                • H Offline
                                  hobosapien
                                  last edited by

                                  This is amazing - when can we possible see this used as the official game executable over the current one? Seems like performance and networking issues are solved and would make playing this game night and day better.

                                  1 Reply Last reply Reply Quote 1
                                  • George_W_CrushG Offline
                                    George_W_Crush
                                    last edited by

                                    Can you reverse-engineer someone's motivation to play 1v1 so this great project gets people to actually play it?

                                    Joking aside, really amazing work. I spoke to a few people briefly about how this is all legal, given it is effectively grabbing tech without permission via forceful reverse-engineering. Hope there are no legal hurdles that interfere with this!

                                    Honestly, just super impressed this is a thing. If you put up a gofundme to help cover the cost of the AI subscription, I would be happy to share a little.

                                    Just unreal to hear this has happened after 2 decades of secrecy.

                                    D 1 Reply Last reply Reply Quote 0
                                    • D Offline
                                      Draiget @George_W_Crush
                                      last edited by

                                      @George_W_Crush thank you for your feedback! Unfortunately gofundme doesn't work with my country (list of countries there are very small btw), if you wish to support this activity there are ETH (crypto currency) address in the bottom of a post.

                                      From legal perspective, removing all "Address: 0x000000" from code and renaming would make it cleaner as well as renaming and restructuring engine (from gpg and moho to anything else) but that's a future part of roadmap, currently it should be 1:1 to original as possible before FAF community actually will start using it.

                                      1 Reply Last reply Reply Quote 0
                                      • H Offline
                                        hobosapien
                                        last edited by hobosapien

                                        Got it up & running and tested a skirmish and everything seems to be working fine - no obvious bugs. I would love to test the multiplayer aspect to see how massive amounts of units (2k+) perform with the performance changes. This is GAME CHANGING and I can only hope we can use this for FAF at some point.

                                        Any chance this client could somehow be up & running on the FAF test server?

                                        1 Reply Last reply Reply Quote 0
                                        • D Offline
                                          Draiget
                                          last edited by

                                          @hobosapien I did prepared bunch of PRs to FAF repos for the rollout to fafdevelop, they're under review currently. There are project board where you can see current project (and rollout) status - https://github.com/users/Draiget/projects/3/views/2?sliceBy[columnId]=Milestone&sliceBy[value]=FAFDevelop+Rollout
                                          Hope soon.

                                          NuggetsN 1 Reply Last reply Reply Quote 2
                                          • NuggetsN Offline
                                            Nuggets FAF Association Board @Draiget
                                            last edited by

                                            @Draiget This sounds amazing! Didnt know it would come this soon!
                                            What can we expect there? I was looking at the status board, and especially at the "Rejoin a running multiplayer game after a crash or disconnect

                                            1 Reply Last reply Reply Quote 2
