Supcom/Moho engine rewrite

SlightlyGrilled

Hello, I have made an attempt at making a drop in replacement for supcoms Moho engine.

Now first off the bat this was of course made with ai, but please before the pitch forks are raised.

this whole post has been done by hand
I did a large amount of research in to supcoms Moho engine, both for this project and many years ago when I tired (and massively failed to do this in c++) and I want to believe I carefully guided the ai in what I wanted and what I believe is important for this style of engine
I am also an senior dev with over 15+ years of experience, so I’m not just some script kiddy spluting out the game.
I have really done this in good faith, supcom is one of my all time favourite games and I really wish for it to live for ever

That said, I also want to say straight away this wouldn’t have been any near as possible if it wasn’t for the huge huge amount of effort all the people working on faf and other communities have put in over the years to supcom, so a huge thank you to them.

It’s also certainly not finished, it’s one of those 90% takes 10% of the time, and the last 10% takes 90%, but I wanted to get this out there.

I guess first off, tech wise.

its written in rust
Its a drop in replacement (although requires currently faf github checked out and supcom installed on your pc, or atleast its files)
uses luau for the lua with both patches both to the lua vm, and also lua source code translation for all gpg specific changes they made.
I hope the luau in the future allows for using luau typed version of lua
shaders are written in wesl
it is cross platform (well at least windows and Mac)
it supports up to 63 player multiplayer. (I think it can go higher, but it's currently a performance trade off and I figured 63 was enough to compete against a certain other rts game )
it works with faf lua unchanged, apart from some very small bits I had to shim.
64bit
has testing and benchmarking

It's fast. (This was super important to me, what’s the point if we can’t go fast?)
With a 60min game of 4x4 on setons of ai vs ai runs at 4x real speed. and a 1v1 can run at 180x realtime on my Mac.
This is really limited by the ai logic in lua, I have test maps with 16k units all pathfinding and shooting at each other, all running well above base game speed.

And I’m 100% sure it could be improved further.

Of course many things are still not working correctly, particularly the graphics are not an exact match.

I also imagine a lot of work needs to be done on the look and feel of things, such as unit movement etc…

It also doesn’t support save games at the moment or replays.

Although with where i have got it to, im sure it won't belong before it's basically a mirror to the current game.

I really hope this is well received, I know ai was used, but I did actually put a good amount of effort in to planning this, and just general slow build up of knowledge over the years.

After a bit more work i will open source it

here are some videos of the game

4 v 4 networked game between windows and mac (2 on windows, 6 on mac)
https://youtu.be/OiNBzXKnppc

an 4v4 full ai game
https://youtu.be/GotWNzX6Xgs

a 63 ai player game (although could be people)
https://youtu.be/u5EUMRxeL0Q

lycanrising

63 ai player game (although could be people)
🥲 what!!!!

nomads

Great job, keep going！

LimeZ3_

gj

Giebmasse

Impressive, curious for more!

randomko

A brilliant job, especially considering that the team next door have been making Sanctuary for several years and are still very much a work in progress. Hope you manage to get as close as possible to the original supcom

Xanoxis

I hope this project and anything around it can work out, especially if it can push the development of FAF even further.

SlightlyGrilled

So here is a "working" build, but first I just wanted to address the work, Yes of course I have made this with heavy amounts of AI, and I know that kind of sucks, especially for those that have worked so hard on faf over the years.

In no way do i want this work to take away from that hard work.
What I hope, is that those people will be empowered by this project, they can already achieve magic with asm patches to the exe, imagine what can be done when they have real code to work with.

I have no doubt that many many people understand fafs lua better than me, have better understand of graphics/pathfinding/supcoms quirks and behaviours/etc...
And I am excited to see what they will be capable of achieve with this work.

I do plan to give the whole project to faf, code and all, and then you guys can do as you see fit with it.
I just hope it helps and empowers the community. (I guess the ends justify the means???)

Here is both an mac and windows exe. its to big to include here, so (and i can't believe this.. a link to limewire of all places... happy to share the file another means this was just the first google hit)
https://limewire.com/d/kIwte#CQnpfbOgYt

When launching either they will attempt to find faf and supcom, if they can't they will ask you to give it to them.

you need the latest faf

Although it does not intergrate in to faf currently.

I explain networking below, but to play together:

someone must host the game using the multiplayer option in the main menu, create a game as usual

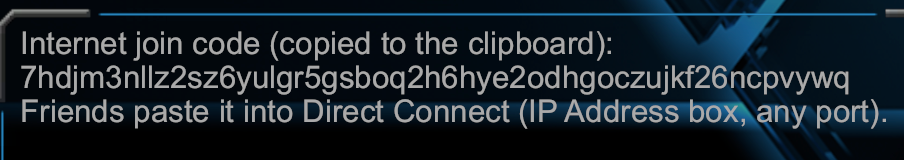

They will be give a long code in the chat, its also copied to the clipboard
Others can then join via the multiplayer option in the menu, putting that string in to the ip address section, and 1 in the port section
like below (note the code doesn't match in this screenshot cos i took it at different times)

Now as said before while the game "works", its really really is far from perfect, many things are broken or not working as expected.
I also have only been able to test, on an old windows machine, a surface laptop, and a new mac.
I don't have anything with an amd card, so god knows if those work.

If you get crashes, give me the logs to look at, although i make no promises im only human (even if ai can help...)

I have zero idea about mod support, i haven't had the time to look at it, in theory it should work, or at least i originally set up the ground works for it.

Bugs:
There will endless bugs of that im sure, every time i launch the game i notice bugs, and i'm just a casual noob player.

behaviour bugs (the tanks don't work like that, gunships don't hover like that, navy pathfinding is just awful right now)
crashes (i'm guessing this will mostly be graphics card related)
missing functionality (the novax doesn't work at all)
look and feel of graphics (particles are all over the place, like projectiles, the uef t3 defence, or transports and gunships, the list goes on...)

I haven't tested many things, as i just haven't had the time and wanted to get this build out to people to mess around with.

Really this project is a proof of concept, i think it will take the faf community time if they choose to make this a real replacement)

If you have things not working please give me the log file, it should be next to the exe.

Networking:
So I’m really excited about the networking.

First off it uses this fantastic library called Iroh, which does p2p with nat punch though. It will attempt to create direct p2p connections between players, and if not possible it will route the connection through a relay, at the moment this uses iroh public server which has zero guarantee about uptime and through put, but faf could easily host their own one.

When creating a lobby, the game will give you a long random string, others simply need to paste that in to ip direct connection, plus any port number between 1-65k

and it should connect :fingers_crossed:

The game still uses udp underneath although its got a reliability layer on top, and I believe connections through irohs relay are tcp, if your direct connected its udp.

I have zero idea how well this will actually work in the real world, but I have played a game with a friend.

Next is player input.
(now I could be wrong) but my understanding of how supcom does its input syncing is:

sim ticks along at 100ms, player input it sent every tick, but with a 500ms(I think?) delay, as all players need to have this input from every other player in order for the game to continue, thats what causes hitches with bad connections. As the game pauses waiting for input.

What this version does.
Fundamentally its the same, however instead of a fixed 500ms, each player has a dynamic input step. All ticks still need an input step.
but each player now measures their latency/ping to others, and picks an input delay for themselves.

all their input is then marked with that delay. which comes in as (please apply this input in 5 ticks (or 500ms))

or if they have a very fast connection (please apply this input in 2 ticks (200ms))

The upside to this is bad connections should cause as much less hitching to everyone.

The down side is unfairness, a very laggy player can cause the delay of inputs to rise for those connected to them with a bad connection (as it could just be a bad connection between only 2 people).

I would purpose that there is an option to lock the input delay.

I hope this means people with high ping can still play in games, even though it does still impact people by delaying their inputs. But should minimise freezes.

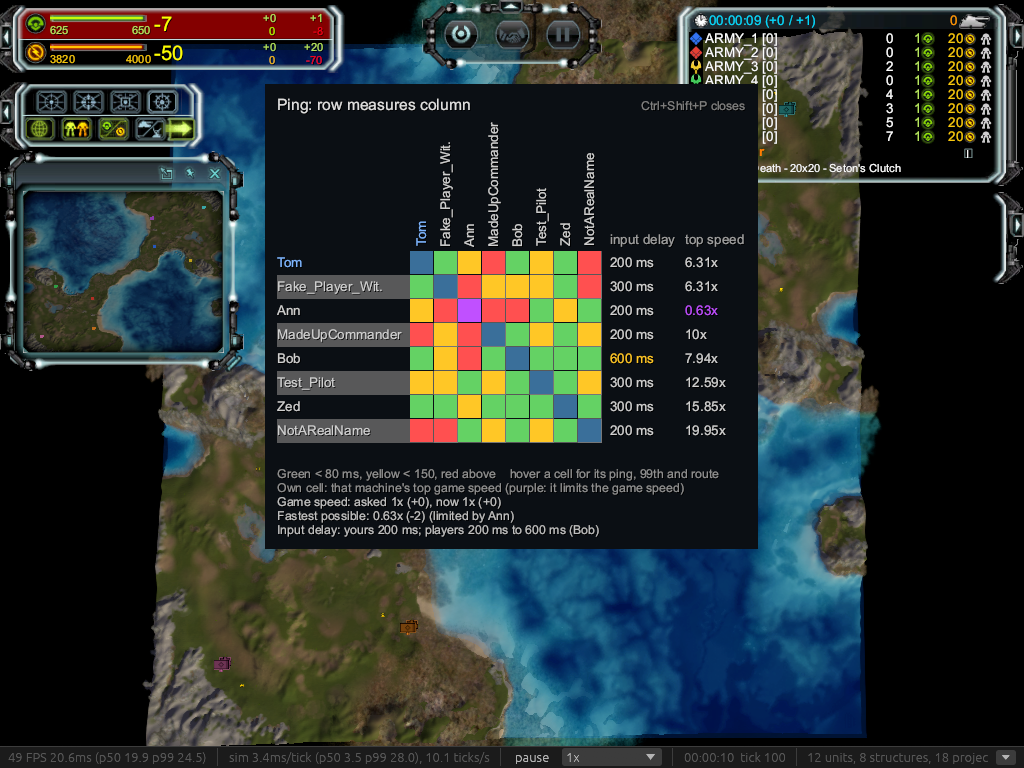

To show this all off, there is now a ping table bit of ui. You can see it with ctrl + shift + p, or on Mac cmd + shift + p

it's a grid showing the whole mesh of connections between everyone, so all players can understand the network layout of the mesh.

it shows the current max game speed for each player, and their input delay

This should help understand when 2 players have a bad connection to each other, but good to everyone else

This screen shot is with faked players and numbers, but give you an idea, of course hopefully in a real game you don't see that much red

Perf
Here is a crazy 64,000 airplanes fighting, of course its completely laggy, but it's somewhere in the realm of vaguely playable, the main bottleneck for graphics is the particles which would need moving to be gpu accelerated, as they are currently processed all on the cpu.
https://youtu.be/gTWnagf_Gak

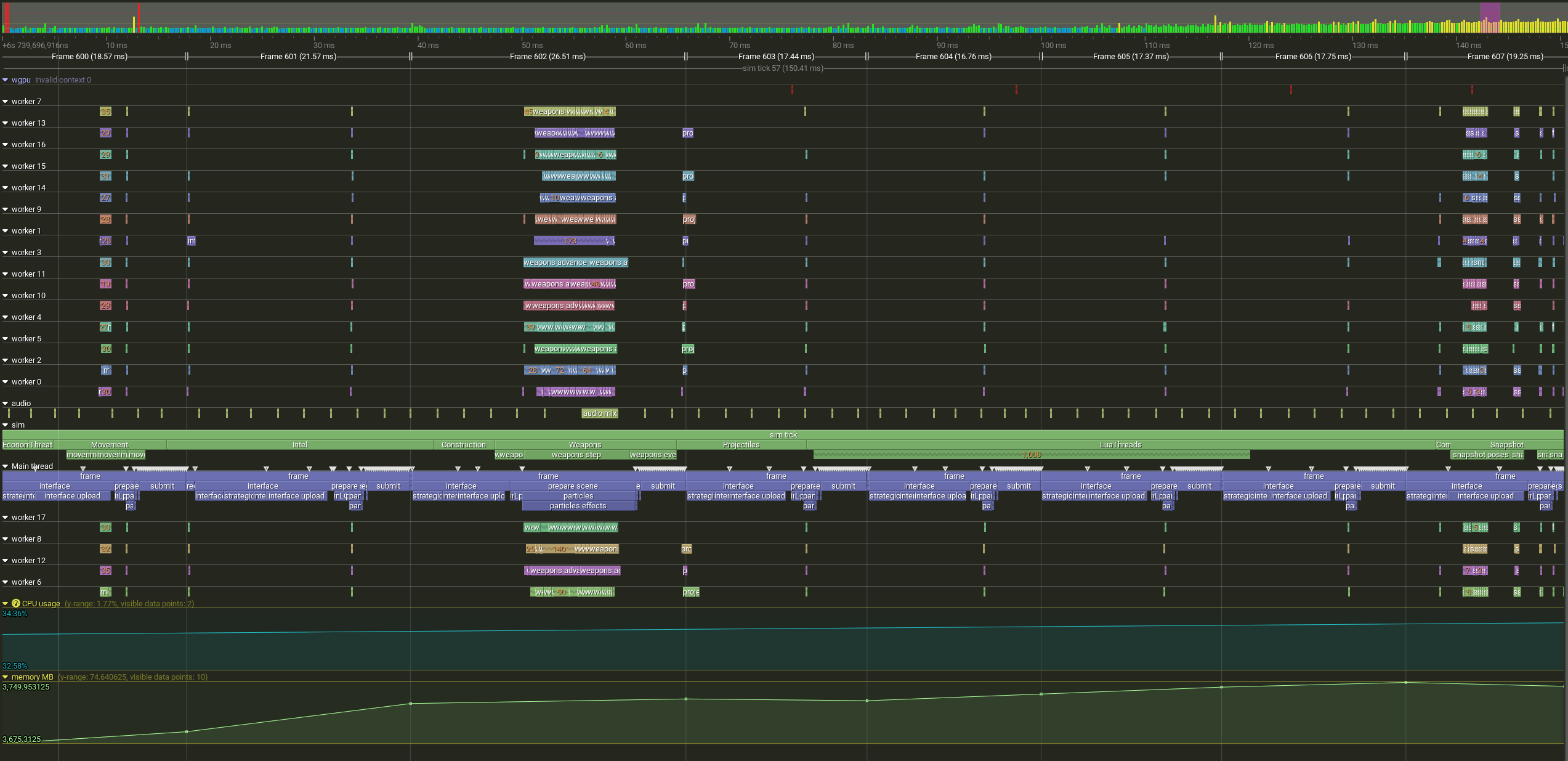

also for those that want it, here is a tracey profile of that, proving that it can use more than 1 core! although its still mostly single threaded unless the scale is really high.

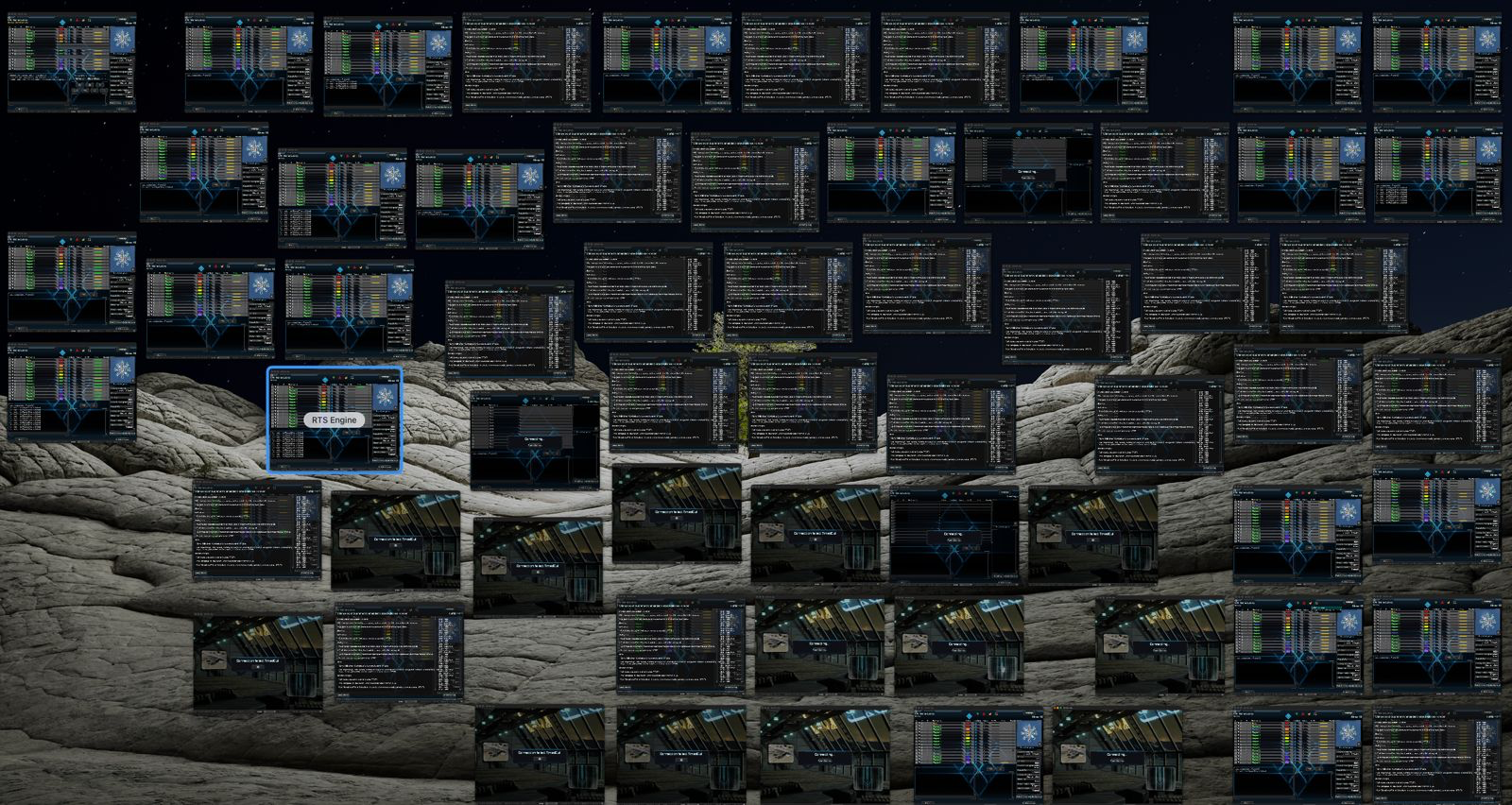

I did test 63 players locally and it brought my machine to its knees...

I have patched the faf lobby in this exe to allow 64 players, although no map supports that, i've included an edited flat map that should support it. Everyone would need this map, the exe does not support transferring files yet.
I honestly have no idea how well it will work.
flat_63.v0001.zip

snoog

Pretty funny (and awesome) seeing this here today. I was just reading about new AI models and their reverse engineering capabilities and was thinking about giving something like this a shot. Looks pretty damn sweet so far. Who'd ever imagine potential 64p SupCom? Love that you having a "working" MP version already, and that connection grid.
